Product Tested

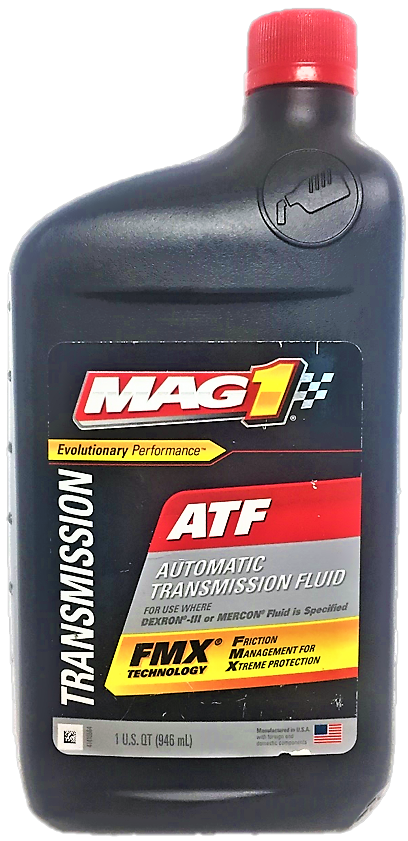

front label

Click above for larger image

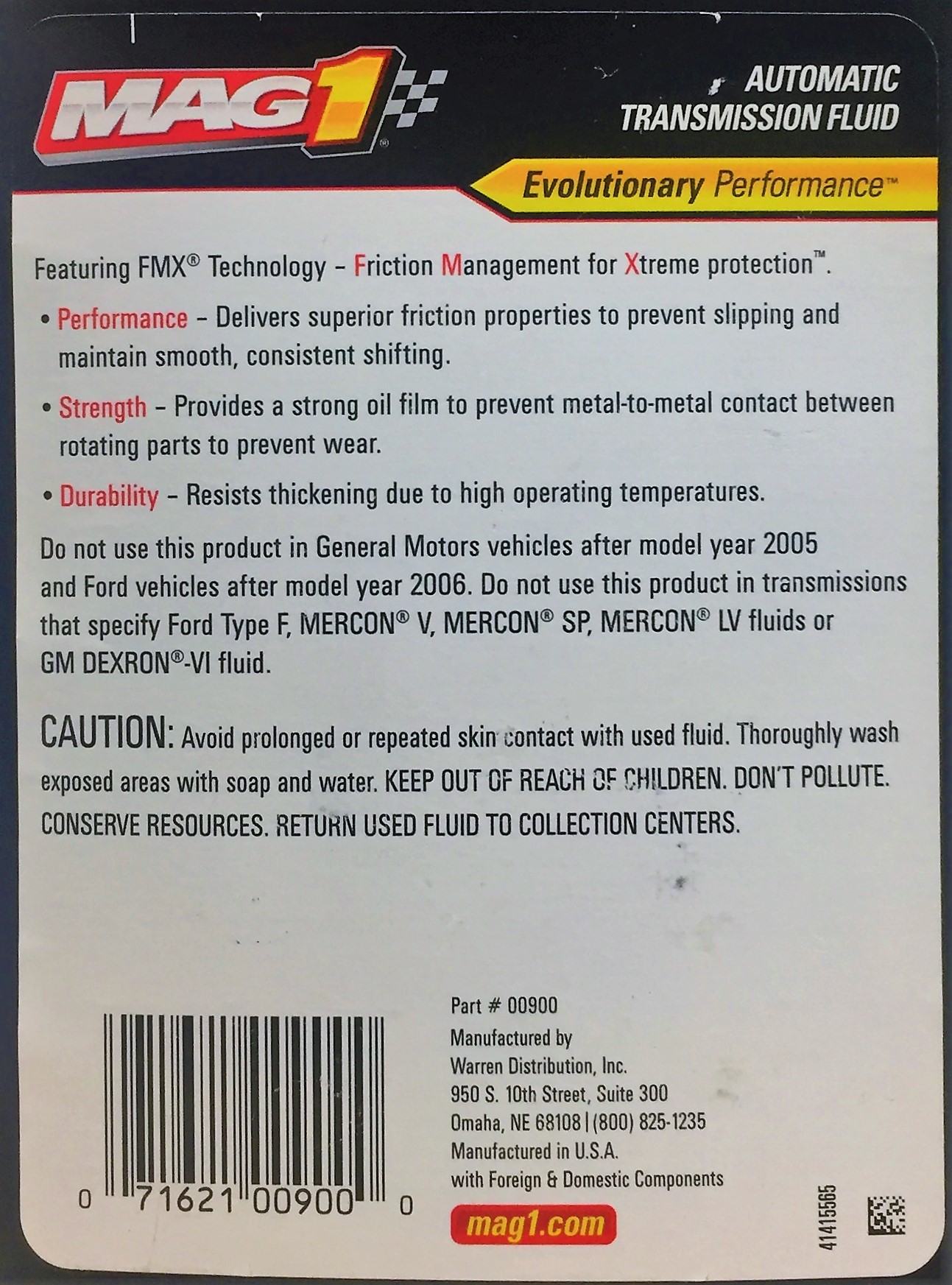

back label

Click above for larger image

Warren Distribution, Inc.

Company and Product Information

Corporate Office:
Warren Distribution, Inc.
727 South 13th Street
Omaha, Nebraska 68102

Website(s): mag1.com

Warren Distribution was founded in 1922 as Warren Oil Company by James Schlott, the grandfather of Robert N. Schlott, the current Chairman / CEO. The business began by supplying lubricating oils and related products to the agricultural business in the surrounding area. Such business remains the principle focus of the firm today. Today, three quarters of company revenue is from its own manufactured products (including both private label and house branded). Over the years the firm has received a number of performance recognition honors from its business partners including a Sears Partner in Progress Award (2000) and twice a WalMart Vendor of the Year Award (2003 and 2005).

MAG1 Automatic Transmission Fluid

Product: MAG1 ATF
Labeled: "FOR USE WHERE DEXRON®-III or MERCON® Fluid is Specified"

Distributed by: Warren Performance Products

Purchased at: Warren, OH

Date of purchase: 4/25/2018



Website(s): mag1.com

Test Results and Assessment:

The results of the tests conducted on this sample are consistent with their labeled claims.



bottle icon Physical Properties pass
Elemental Analysis pass
Labeling warning
Flash Point of a DEXRON III/MERCON Fluid in °C (ASTM D92)

The results of the Flash Point test conducted on this sample meet the requirements of Dexron III/Mercon.
FusionCharts XT will load here!
Viscosity @ 100°C, cSt (ASTM D445)

The results of the Kinematic Viscosity @ 100ºC test conducted on this sample meet the requirements of Dexron III/Mercon.
FusionCharts XT will load here!
Brookfield Viscosity @-40°C mPa s (cP)

The results of the Brookfield viscosity test conducted on this sample meet the requirements of Dexron III/Mercon.
FusionCharts XT will load here!
PHYSICAL TESTS (click for test details) - a Standard MAG1
Flash Point in ºC (ASTM D92) 170/177 Min-c 221
Viscosity @ 100ºC, cSt (ASTM D445) 6.8 Min 7.2
Viscosity @40ºC, cSt (ASTM D445)   34.1
Viscosity Index (ASTM D2270) 182
Brookfield Viscosity @-40ºC mPa s (cP) 20,000 Max 13,869
ELEMENTAL ANALYSIS (click for test details) - a, b
Additives
Calcium, ppm 24
Magnesium, ppm 2
Phosphorus, ppm   188
Zinc, ppm 13
Molybdenum,  ppm <1
Barium, ppm <1
Boron, ppm 61
Silicon, ppm 3
Potassium, ppm 1
Manganese, ppm <1
Titanium, ppm <1
Copper, ppm <1
Sodium, ppm <1
Vanadium, ppm <1
Contaminants
Silver, ppm <1
Aluminum, ppm <1
Chromium, ppm <1
Iron, ppm <1
Nickel, ppm <1
Lead, ppm <1
Antimony, ppm <1
Tin, ppm <1
  1. Standards, shown in yellow are established by API, SAE and others.
  2. Test Method for metal analysis is ASTM D5185.
  3. DEXRON® III, 170°C minimum, MERCON®, 177°C minimum.
