Phillips 66 is a diversified energy manufacturing and logistics company. With a portfolio of Midstream, Chemicals, Refining, and Marketing and Specialties businesses, the company processes, transports, stores and markets fuels and products globally.Phillips 66 Partners, the company's master limited partnership, is an integral asset in the portfolio. Headquartered in Houston, the company has 14,000 employees committed to safety and operating excellence. Phillips 66 had $50 billion of assets as of June 30, 2015. For more information on Phillip 66's family of lubricants, visit www.phillips66lubricants.com.
The Petroleum Quality Institute of America (PQIA) is an independent resource for information and insights on the quality of lubricants in the marketplace. Our mission is to serve the consumer of lubricants by randomly sampling and independently testing lubricants taken from the field. Test results are posted along with the brand names on the PQIA website. This webpage provides an analysis on the brand detailed below.
The following are the test results for the sample examined.

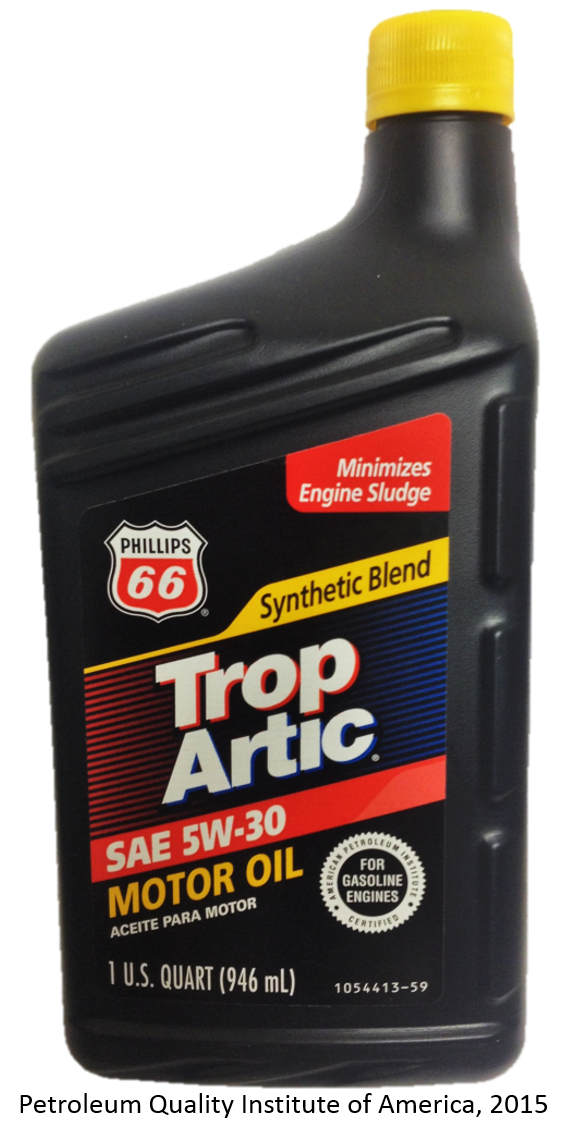

Manufactured by: Phillips 66 Lubricants c/o Phillips 66 Company in Houston, TX
Purchased at: Council Bluffs, IA
Date of purchase: 4/28/2015
Website(s): www.phillips66lubricants.com
The results of the tests conducted on this sample meet the SAE J300 specifications for the SAE Viscosity Grade listed on the product label, and are consistent with the listed API Service Categories.
.
|
Physical Properties |  |
| Elemental Analysis | |
|

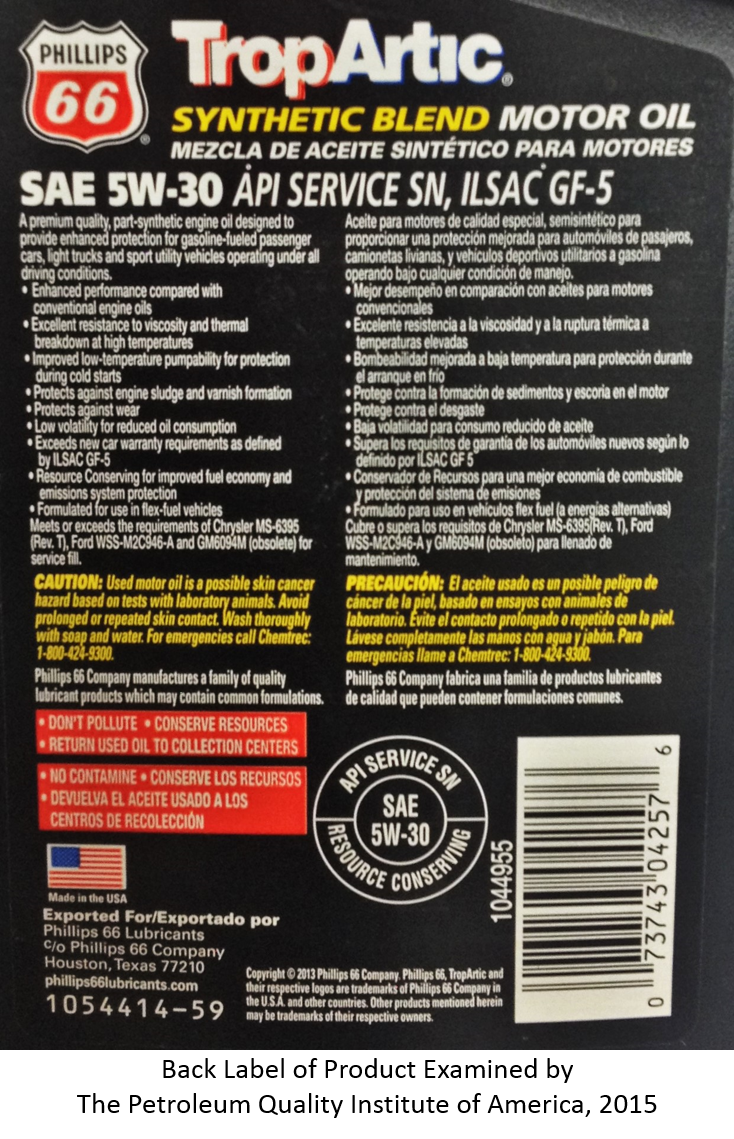

| Labeling | |
Note: Although laboratory tests alone cannot be used to establish if engine oil meets an API Service Category, they can be used to determine if it doesn't.
| PHYSICAL TESTS (click for test details) - a | Standard | Phillips 66 Trop Artic |
| TBN, mg KOH/g (ASTM D2896) | 7.7 | |
| Viscosity @ 100ºC, cSt (ASTM D445) | 9.3 to <12.5 | 10.8 |
| Viscosity @40ºC, cSt (ASTM D445) | 65.2 | |
| Viscosity Index (ASTM D2270) | 157 | |
| Viscosity @-30ºC mPa s (cP) (ASTM D5293) | 6,600 Max | 6008 |
| Volatility, mass % loss, 1 hr, @ 250ºC (ASTM D5800) | 15 Max -c | 14.9 |
| ELEMENTAL ANALYSIS (click for test details) - a, b | ||
| Additives | ||
| Calcium | 2309 | |
| Magnesium | 10 | |
| Phosphorus, ppm | 600 to 800 | 753 |
| Zinc, ppm | 810 | |
| Molybdenum, ppm | 16 | |
| Barium, ppm | <1 | |
| Boron, ppm | 182 | |
| Silicon, ppm | 5 | |
| Potassium, ppm | <5 | |
| Manganese, ppm | <1 | |
| Titanium, ppm | <1 | |
| Copper, ppm | <1 | |
| Sodium, ppm | <5 | |
| Vanadium, ppm | <1 | |
| Contaminants | ||
| Silver, ppm | <1 | |
| Aluminum, ppm | 2 | |
| Chromium, ppm | <1 | |
| Iron, ppm | <1 | |
| Nickel, ppm | <1 | |
| Lead, ppm | <1 | |
| Antimony, ppm | <1 | |
| Tin, ppm | <1 | |
|
||
