Zecol-Max D3/M ATF

Product Tested

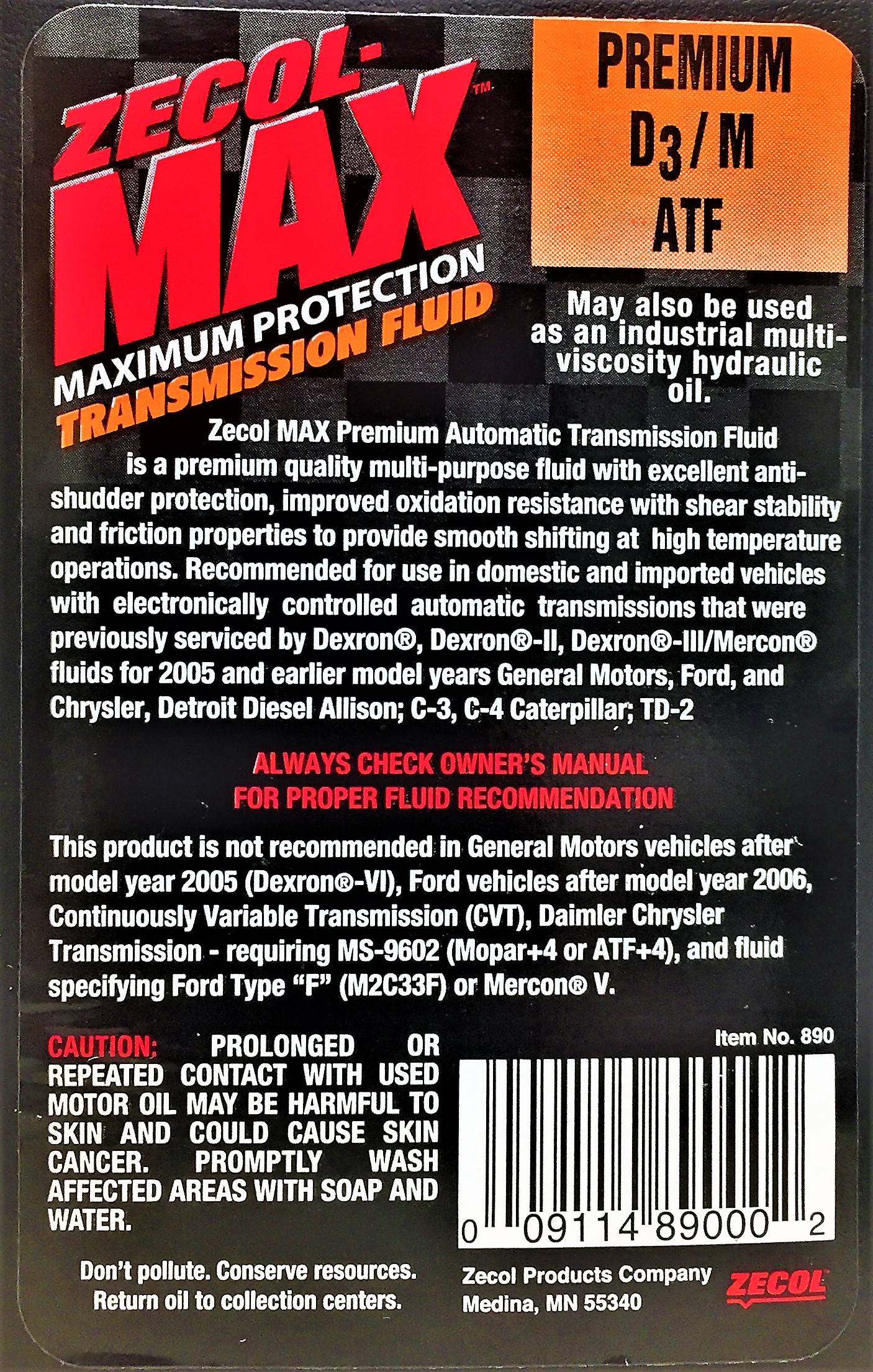

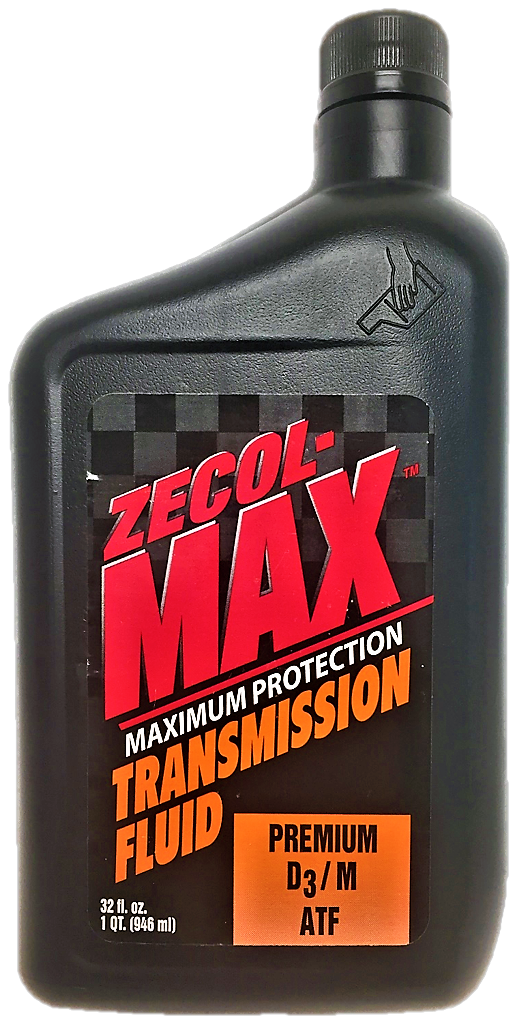

Click above for larger image

Click above for larger image

Zecol Products Company

Company and Product Information

Corporate Office:
Zecol Products Company
4635 Willow Drive
Medina, MN 55340

Website(s): www.twincoromax.com

According to Twinco Romax website, the company is a “vertically integrated distributor and manufacturer of automotive fluids and related aftermarket products sold to a diverse base of customers in the convenience store, automotive, mass market, farm store and other retail channels. Based in Medina (Minneapolis), Minnesota.

Product: Zecol-Max
Labled: D3/M ATF

Marketed by: Zecol Products Company, Medina, MN

Purchased at: Berea, OH

Date of purchase: 5/14/2017

Website(s): www.twincoromax.com

Test Results and Assessment:

The results of the tests conducted on this sample are consistent with their labeled claims.

Physical Properties

Elemental Analysis

Labeling

Flash Point of a DEXRON III/MERCON Fluid in °C (ASTM D92) The results of the Flash Point test conducted on this sample meet the requirements of Dexron III/Mercon.	FusionCharts XT will load here!
Viscosity @ 100°C, cSt (ASTM D445) The results of the Kinematic Viscosity @ 100ºC test conducted on this sample meet the requirements of Dexron III/Mercon.	FusionCharts XT will load here!
Brookfield Viscosity @-40°C mPa s (cP) The results of the Brookfield viscosity test conducted on this sample meet the requirements of Dexron III/Mercon.	FusionCharts XT will load here!

Note¹: Although laboratory tests alone cannot be used to establish if engine oil meets an API Service Category, they can be used to determine if it doesn't. Note²: The specifications for flash point and viscosity @ 100°C include only minimum values; the maximum values shown in the “standard” area of the chart are truncated for illustrative purposes.

PHYSICAL TESTS (click for test details) - a	Standard	Zecol-Max
Flash Point in ºC (ASTM D92)	170/177 Min-c	219
Viscosity @ 100ºC, cSt (ASTM D445)	6.8 Min	7.2
Viscosity @40ºC, cSt (ASTM D445)		33.7
Viscosity Index (ASTM D2270)		185
Brookfield Viscosity @-40ºC mPa s (cP)	20,000 Max	12,560

ELEMENTAL ANALYSIS (click for test details) - a, b
Additives
Calcium, ppm		61
Magnesium, ppm		0
Phosphorus, ppm		175
Zinc, ppm		2
Molybdenum, ppm		0
Barium, ppm		0
Boron, ppm		84
Silicon, ppm		4
Potassium, ppm		0
Manganese, ppm		0
Titanium, ppm		0
Copper, ppm		0
Sodium, ppm		0
Vanadium, ppm		0
Contaminants
Silver, ppm		0
Aluminum, ppm		0
Chromium, ppm		0
Iron, ppm		0
Nickel, ppm		0
Lead, ppm		0
Antimony, ppm		0
Tin, ppm		0
Standards, shown in yellow are established by API, SAE and others. Test Method for metal analysis is ASTM D5185. DEXRON® III, 170°C minimum, MERCON®, 177°C minimum.
